YK1650F Pre-stretch Automatic Pallet Wrapping Machine

YK1650F (Pre-stretch) And YK1650CS (Top plate) Automatic Pallet Wrapping Machine with PLC control.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of YK1650F Pre-stretch Automatic Pallet Wrapping Machine


1.YK1650F Pre-stretch Automatic Pallet Wrapping Machine has PLC control
2.Photo-eye auto-height sensing pallet height
3.Pre-stretch device feeding film automatically
4.Pre-stretch can reach 250%,reduce film consumption
5.Separate top, bottom & up-down wrap counter options
6.Film tension control adjustment on the panel
7.Variable turntable speed; carriage up/down speed control
8.Manual/automatic exchangeable

Structure of YK1650F Pre-stretch Automatic Pallet Wrapping Machine


Control System
* PLC control
*Photo-eye auto-height sensing pallet height
*Separate top ,bottom & up-down Wrap Counter options
*Overwrap time is up to create an overwrap
*Reinforce wrap times is set to better secure 2 loads placed on top of each other
*Film Tension Control adjustment on the panel
*Separate start, pause and emergency stop buttons
*Manual carriage up/down
*Variable Turntable Speed
*Carriage up/down speed control
*Manual/automatic exchangeable

Turntable
*1650mm Diameter Structural steel plate
*85mm Height floor to top of turntable

Turntable drive
*0-12rpm variable turntable speed by frequency changer
*Position turntable alignment
* works under speed 0.75 kw motor with reduction gearbox ,Soft start
Film carriage
*Powered pre-stretch system up to 250% to min film consumption
*Carriage door opens for effortless roll change and thread film
*Film delivery variable speed by separate DC Drive Motor
*Electronic film tension control adjustment on panel
*Film dancer-bar with variable speed output

Film carriage Drive
*Heavy duty double-chain carriage lift, calm and safety
*Film carriage variable speed by frequency changer

*works under 0.23 kw motor with reduction gearbox


Parameter of YK1650F Pre-stretch Automatic Pallet Wrapping Machine

(L*W) Wrapping Size

(500~1200)mm ×(500~1200)mm

Wrapping Height

L model 1800mm  H model 2400mm

Working Capability

20~40CTNS/ HOUR   0-12rmp/second

Board Size

φ1500mm&1650mm , H85mm

Loadable Weight

(max)2000Kg

Film carriage system

Pre-stretch film carriage, auto convey the film,

up-down  frame

Double chain, adjustable speed

Controller

PLC control,overwrap layers adjustable,Pre-stretch film carriage

Power/Voltage

1.35KW/AC220V

Material (thickness, width )

PE  T17~35um ,W500mm

Weight

750K

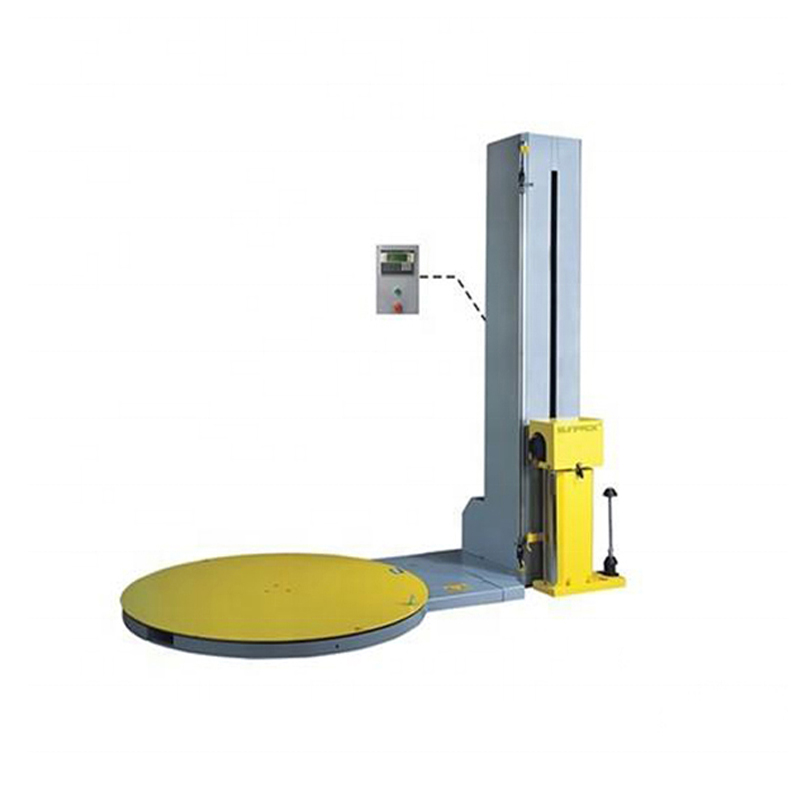

Pictures of YK1650F Pre-stretch Automatic Pallet Wrapping Machine

Your Name

Email or contact@chinacoalintl.com

Tel/Wechat/Whatsapp or +86-17753785400

Country

Enquiry bitian

New Comment

  • Sethumadhavan
    We are using YK1650F-H Automatic Pallet Wrapping Machine, we have faced some issues on this machine. So please send to us the manual and electrical drawing.
    Customer service:Ok sir, we will contact you as soon as possible
  • Adam Ermisch
    Hi - Looking for the manual in English please. Having issues with the operation. Thank you
    Customer service:Ok sir, we will contact you as soon as possible
