Introduction of 6YL-125 Oil Screw Press Machine
1.This 6YL-125 Oil Screw Press Machine has simple structure and it is easy to operate.
2.It has high oil extraction rate ,and the oil is of fine quality.
3.This machine is well designed so it could save power, and it makes low noise during the process of operation,which is good for the health of the people who works around the machine.
Main Features of 6YL-125 Oil Screw Press Machine
1. High oil yield, low oil residual in cake. The oil left in cake is less than 6%; The cake thickness can be adjusted when machine stops running;
2. Small-land using: Only 10-20 square meters workshop can make production.
3. Pure oil quality: Machine surface is made of chrome plated stainless steel, in line with food hygiene standards; Besides, with two vacuum oil filters, residual can be removed by simple filtering;
4. Other advantages: High efficiency, energy and labor saving, easy operation, simple maintenance.
Operation Process of 6YL-125 Oil Screw Press Machine
1. Prepare raw materials;
2. Adjust the machine;
3. Open the machine, put seeds into the flow box;
4. Seeds flow into the screw bolt, the pressing begins;
5. The crude oil is out of the squeezing bolt, flowing through the board into the vacuum filter for filtration;
6. The oil flow out from the bottom of pipe and the pressing is finished.
Parameter of 6YL-125 Oil Screw Press Machine
|
Model |
6YL-60 |
6YL-80 |
6YL-100 |
6YL-115 |
6YL-120 |
6YL-125 |
|||
|
Dia of Screw thread |
53 |
80mm |
100mm |
115mm |
120mm |
125mm |
|||
|
Incycle dia of squeeze cage |
55 |
82mm |
|
|
|
|
|||
|
Rev of |
64r/min |
35r/min |
37r/min |
37r/min |
37r/min |
34r/min |
|||
|
Power |
Host machine |
2.2KW |
4KW (Y132M1-6) |
7.5KW (Y132M-4) |
7.5KW (Y132M-4) |
11KW (Y132M-4) |
15KW (Y160L-4) |
||
|
|
Vacuum |
0.18KW (vp-1.5) |
0.55KW (Y801-4) |
0.75KW (Y802-4) |
0.75KW (Y802-4) |
0.75KW (Y802-4) |
0.75KW (Y90S-4) |
||
|
|
Heater |
0.9KW |
2.2KW |
3KW |
3KW |
2.2KW |
3.75KW |
||
|
Processing capacity |
30-80kg/h |
70-150kg/h |
150-300kg/h |
200-400kg/h |
250-400 Kg/h |
250-450 kg/h |
|||
|
Weight |
268kg |
880kg |
1100kg |
1100kg |
1500Kg |
1400kg |
|||
|
Dimension mm |
1020*720 *798 |
1700*1100 *1600 |
1900*1200*1600 |
1900*1200*1600 |
2000*1650*1500 |
2600*1300*2300 |
|||

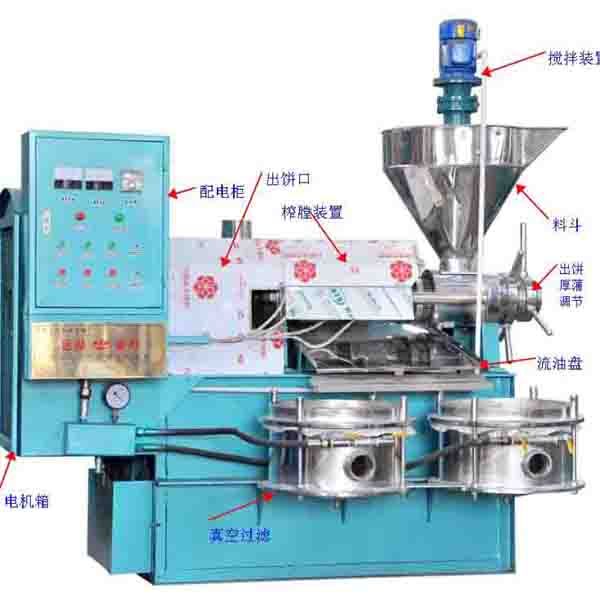

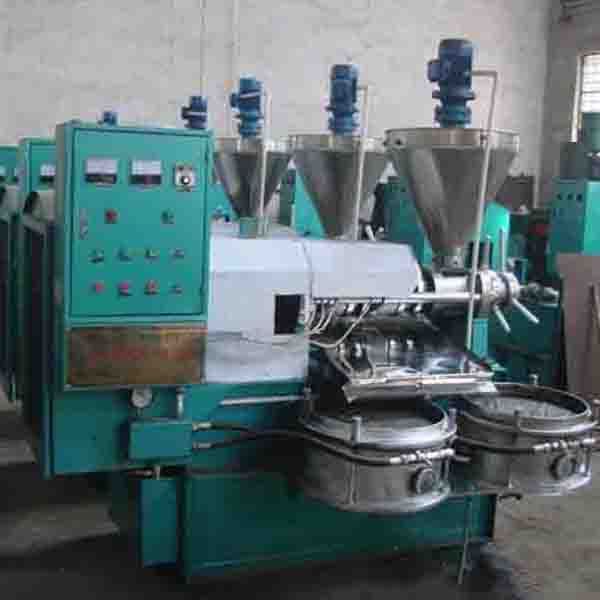

Pictures of 6YL-125 Oil Screw Press Machine
