NOTICE:

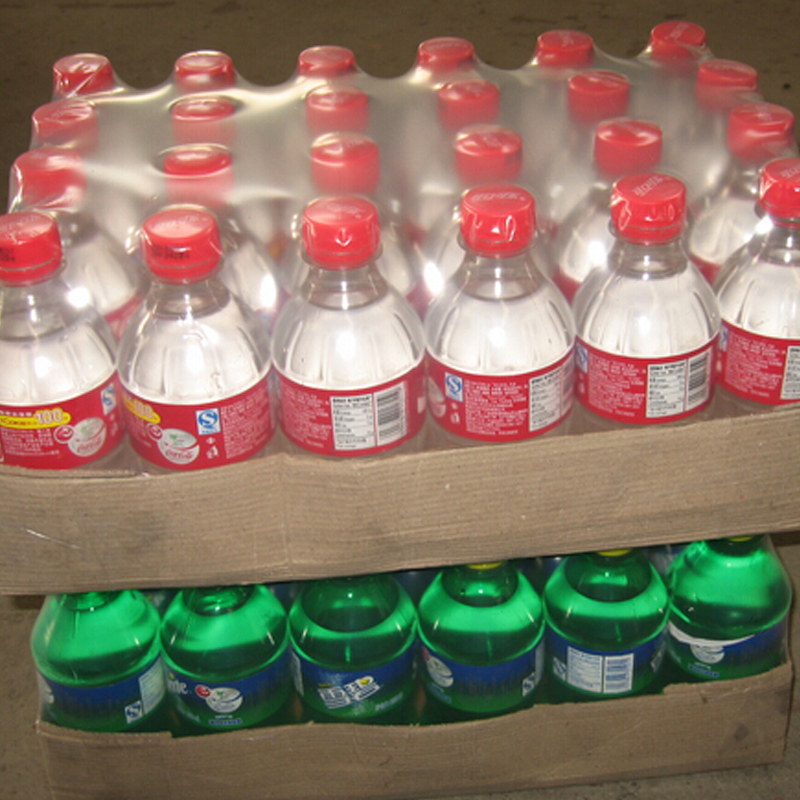

BZJ5038B Semi-Automatic Shrink Sleeve Labeling Machine And BSE5040A PE Film Shrink Packaging Machine is suitable for wrapping pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-5040A jet PE-film shrink tunnel or other PE shrink tunnel BSE-5038. Enlarge packing range or custom-made machine according to customer’s requirement.
Upper and down electromagnetic switch prevent sealing mistakes, and protect operator.
Every simply and easy to adjust machine to match different packing size.
Simple operation and maintenance with high packing efficiency.
‘Schneider’ AC contractor, and Intelligent temperature controller performs stable.
Automatic alarm security system protects machine and operator.
Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
Super cooling system cools the packing and makes the figuration perfectly.
Model |
BZJ-5038B(Pneumatic) |
Model |
BSE-5040A |
Power supply |
220-240V, 50-60Hz;1.8KW |
Power supply |
3phase 220V/380V 50-60HZ |
Capacity |
0-6 packs/min |
Heater power |
20KW |
Sealing time/shrink time |
0.5-1.5s, 0-0.6s |
Conveyer speed |
0-10m/minute |
Conveyor loading |
30kg |
Tunnel size(L*W*H) |
1500*500*400mm |
Film thickness |
0.03-0.12mm |
Conveyer loading |
50KGS Max. |
Max. packing dimension(L*W*H) |
450 x 270 x 350mm |
Machine size |
2500*820*1680mm |
Min. packing dimension(L*W*H) |
250 x 60 x 60mm |
Machine weight |
470KGS |
Machine size(L*W*H) |
1020 x 830 x 1980mm |
Shrink film |
PE,POF,PVC,PP |
