Introduction of Airport Suitcase Luggage Wrapping Machine
Airport Suitcase Luggage Wrapping Machine is a movable and manually operated rotary turntable device. This luggage wrapping machine use stretch film to wrap the luggage .
a. The operator placed the luggage on the platform and adjusts vertical rods to secure bag according the luggage's size .
b. Then begin the wrap process, the operator press start button on control panel pack the luggage by a 3 to 5 layers of stretch film.
c.The operator cuts film tail and removed from the turntable.
d.The luggage wrapping machine is ready to accommodate the next piece of luggage.
Parameter of Airport Suitcase Luggage Wrapping Machine
| Control system | PLC |
| Turnable speed | 50rpm |
| Max wrap size(L*W*H) | 800mm*450mm*1000mm |
| Max wrap weight | 100kg |
| Stretch film | 15-35um |
| power/voltage | 1.2kw/220V/50-60HZ/1Phase |
| luggage wrapping machine weight | 240kg |
| luggage wrapping machine size(L*W*H) | 1650mm*600mm*1700mm |

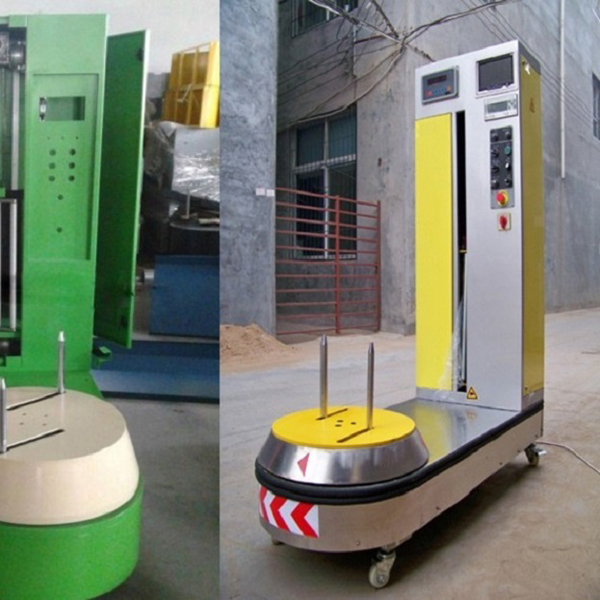

Pictures of Airport Suitcase Luggage Wrapping Machine
